Jib Crane Configurator
Size it. See it. Quote it.
Size, visualise and quote jib cranes in minutes.
In the app
Real screens, demo data
What it does
Built by Censiary for CraneWave, the Jib Crane Configurator sizes a jib crane from a few choices, shows it as a live 3D model and produces the calculation sheet, drawings and an indicative quotation.
- Post jibs (including 360° rotating), wall jibs and knuckle jibs, with underbraced, overbraced or unbraced-head arms
- Capacity from 250 kg to 10 t; outreach, height under boom and slewing angle set by slider
- Options for slewing operation, hoist type (manual chain, electric chain, electric wire rope) and pendant or radio control
- Indoor or outdoor environment with in-service wind class (ISO 4302), and paint (ISO 12944) or hot-dip galvanised finish

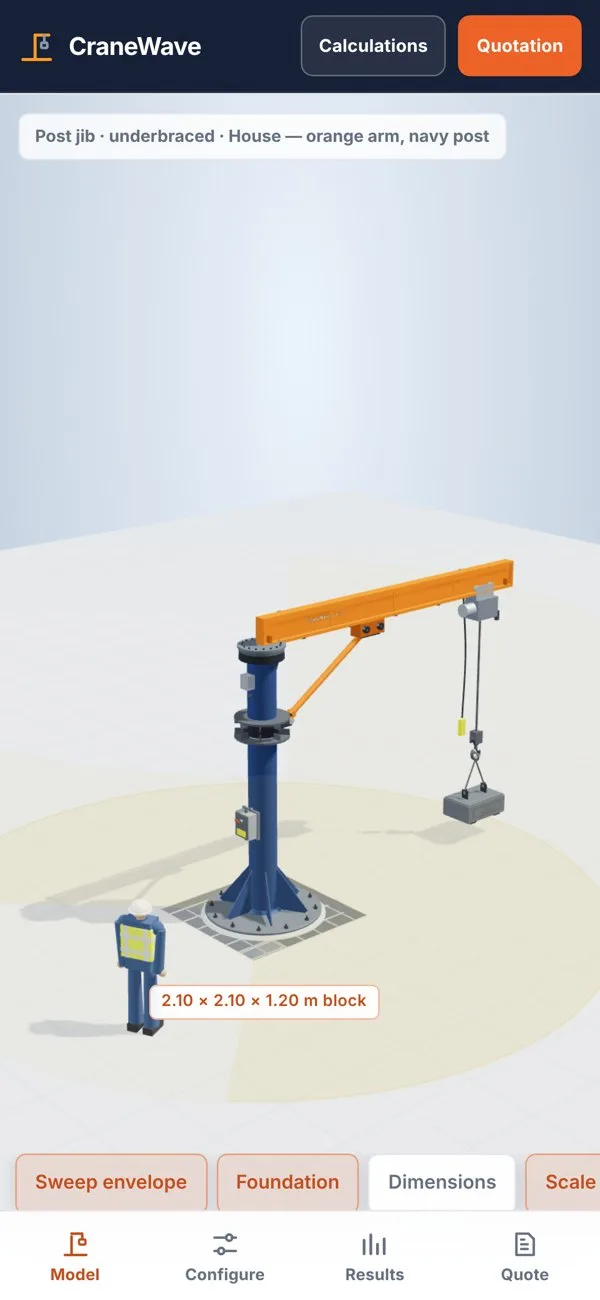

- A live 3D model you can orbit, showing the sweep envelope, foundation and dimensions, with a scale figure
- Calculation sheet, GA drawings and foundation details, plus an indicative quotation with editable rates, all printable to PDF
- Runs in the browser and installs on iPhone and iPad as a home-screen app that works with no signal
Who it's for
Engineers and estimators sizing and quoting jib cranes at early-stage design.
How it fits the platform
Shows how we turn engineering rules into a tool engineers use every day. See Systems development and integrations.
Systems development and integrationsStatus
In use at CraneWaveBuilt by Censiary for CraneWave, and in use at CraneWave for sizing and quoting jib cranes.
